Posted on

rp_equalizer Versions

Windows Version 1.4 BETA (21/06/2016)
We included some new features: Solvend some isues with Japanesse computers

Windows Version 1.3 BETA (19/06/2016)
We included some new features: You can controll now the pulse discharging.

Windows Version 1.2 BETA (16/06/2016)
Solved problems with fonts, some fonts was not included on distribution.

Windows Version 1.1 BETA (9/05/2016)
Solved some issues with Japanesse Windows operating system

Windows Version 1.0. BETA (1/05/2016)
First version launched.

Posted on

rp_manager Versions

Windows Version 1.1.6016.3 (821/06/2016)
Solved some issues with Japanesse Windows operating system

Windows Version 1.1.6000.2 (8/05/2016)
Solved some issues with Japanesse Windows operating system

Windows Version 1.1.* (26/05/2016)
Solved some issues with next batch button, the connect button was not enabled in next batch.
Solved cutting communications after write the “*.csv” files on system. Now communications stops after write the files.
Solved a crash when the batteries where discharged below 0.8v, graph Y axis had a min low value of 800.

Windows Version 1.0.* (18/05/2016)
First version launched.

Posted on

rp_manager FAQ – frequently asked questions

rp_manager matching batteries

rp_manager discharger equalizer for matching miniz batteries
rp_manager hardware

What is rp_manager?
rp_manager is a discharger equalizer plus a software for Windows or Linux Operating systems that help us what batteries AAA are better to come in same pack.

rp_manager is not just a discharger its a equalizer too, cause it will discharge your batteries from top to 0.9Volt, per each cell, in this process rp_manager will get data from batteries and will be able to see what of them is best or worst and with the clould software you will be able to make correct groups of 4 units to put in the same pack and same car.

rp_manager will include a USB connector in order to be connected to your computer and send the entirely discharge process data to the computer, this computer software will create a .csv file for each battery under its name, and this file could be uploaded to our cloud system to select best batteries for the competitions.
This .csv file could be read for any kind of software like Excel or open Office and its write in a open code with a easy structure.


File format:
Column 1: Serial Number
Column 2: Battery name or battery code
Column 3: Time in seconds
Column 4: Voltage at this time
Column 5: Average Voltage

How to match batteries?
1. Connect your PC computer to the Discharger Equalizer rp_manager unit.
2. Install the software for your platform in your PC.
3. Install the drivers form your computer only in windows operating system is necessary.
4. Run the software.
5. Select the COM port.
6. Put the label on your battery.
7. Introduce the name of the battery in each channel.
8. Press Next button
9. Push Connect
10. Introduce each battery in the desired channel, please check the name of battery correspond to a name of channel position.

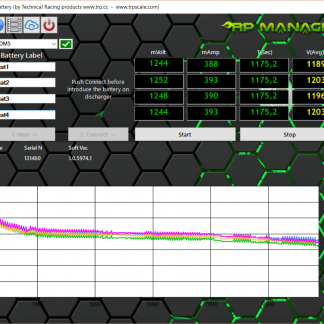

11. Wait and see the result on the screen.
12. One the process will end will appears at right of each channel “Finish” and a soon all channels are finished a next button will appear.
13. Push the button, save files in to your computer. Files will be saves on MyDocuments folder and they will be ready to upload to the cloud system

What will be necessary to the matching process?
1. rp_manager discharger equalizer
2. A USB Cable USB <–> Mini USB
3. 4 AAA batteries
4. A PC Computer, Ubuntu or Windows 10.
5. Some time.
6. If you want to upload the data to the cloud you will need create an account there.

Download Drivers:
Windows Drivers: *** Download ***

rp_manager – Linux Ubuntu 32b (Available soon)
Linux Drivers: You no need drivers.

Windows 10 Software








If you have any question, please post your question in this article, We will try to reply a soon will be possible.

rp_manager cloud
Cloud system image








Video how to use rp_manager

I would like to match all my batteries, what is the best procedure?
We recommend you to be the more strict that you can, discharging and charging before match the batteries.

Our recommended procedure is:1. Discharge the pack with a cut on 1.0V per cell.
2. Charge the batteries at 1.0 Amp
3. After no more than 10 min put the batteries on the rp_manager and start the matching process.

Please understand that, results can be different if you change the method on charge and discharge previous to the matching process.

Can I use the rp_manager to know the best way to charge some kind of batteries?
Yes, you can, you can evaluate the results over same batteries changing the charge process and see what is the best way to charge looking the results.

Can the results be afected by the charger used?
Yes, If you mix everything your will a a good mix of results.

Where I can see the updates of the software?
You can see this link

Do you have a video with a tutorial?
Yes, but for the moment just in Spanish.Youtube channel

I try to open a cloud account and appears this error message: “Your aplication has ben denied, provided information is not correct”
There are diferent reasons that can cause this, the most typical is that you try to open an account with a incorrect serial number more than 2 times, if you fail more than 3 times, the system blocks your IP some hours.
Please could you try after 12h?

I have problems to install the drivers on my Windows 10 Operating system.

There are different ways to install drivers on a Windows 10 Operating System.
First think is download the driver from Download section and un pack cause the driver is coming with as zip file.
Second is when you plug the rp_manager and the operating system is asking you for a driver, you must select the folder where you have unpack the drivers.

Another way to install the driver is just click on right button on the file “ftdiport.inf” and click over install. Also over “ftdibus.inf”

Installing rp_manager drivers





Im sure this video from Youtube can help if you have another diferent operating system.

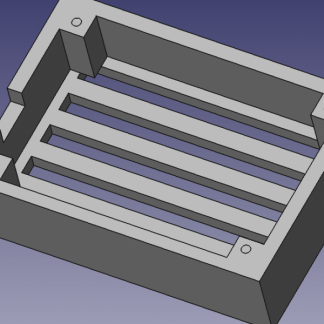

trpscale box rp_manager
by trpscale
on Sketchfab

Can I use rp_manager with Japanesse Computers?

When i run rp_manager I see strange numbers on screen such a impossible voltages or others issues.
This can happens if the software is running in a Japanese or Chinese windows 10.
There are some different solutions:

Solution 1:
Set up the locale ID for non Unicode software in Spanish or English.

Solution 2:
If you do not want restart the windows each time you change this locale ID, you can use this software to SET LOCALE

Solution 3: (Recommended)
It’s use a rp_manager software Version > 1.2. With rp_manager 1.2 or higher its solved this problem with international computer issues.

CSV Files, when I see the CSV Files seams that some values are missing cause time is not increasing one by one. Is all going well?

Yes, all ingoing well, the CSV files only contain values when rp_manager is discharging. The rp_manager is discharging by pulses, so we only take in account the values of voltage when is in discharging process.

rp_manager pulse discharging



I got same discharge time for each battery, discharge must be the same on all batteries, but discharging mAMp are not the same, why?
discharging rp_manager



mAmp are different cause the mAmp are calculated by the “Ohm Law” based on “I = U/R” and not all batteries have the same internal resistance.

Why only rp batteries have image on the cloud?

Cause other manufacturers have not applied to be our sponsors ;-(


Posted on

rp_manager by trpscale (our miniz battery manager)

We are working on a new item for MiniZ competition, this time is time to improve the battery selection for our MiniZ cars, so we have created a new item to select the batteries as your convenience.
Our software and hardware will you let you know the best battery that you have on your MiniZ box and will let you know what batteries must go together in one pack to rise the best results performance.
The software will be available very soon for Windows and Linux computers.
rp_manager battery matching

Posted on

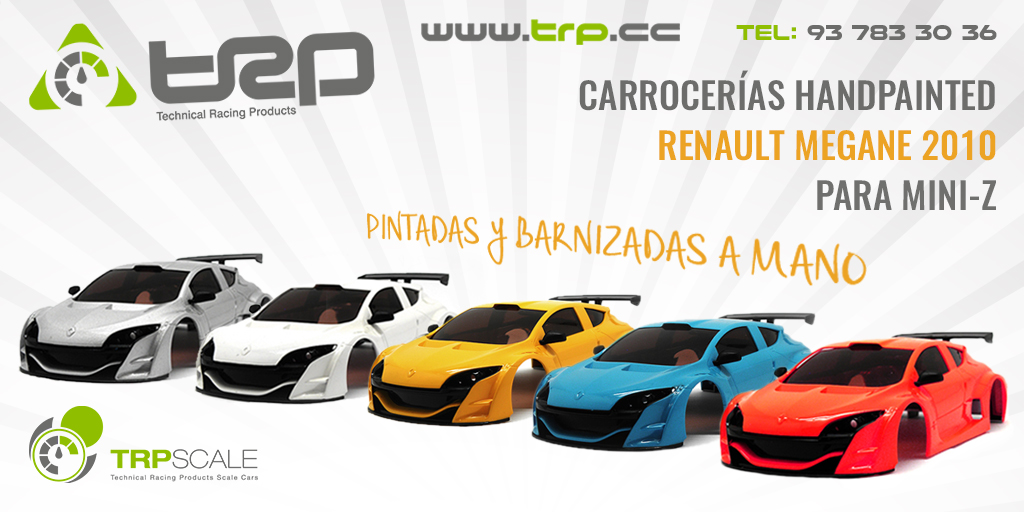

TRPscale Renault Megane Trophy V6 2010 for Kyosho MiniZ

We are glad to announce the next miniz body that we will launch in some weeks, this body is the new version of Renault Megane Trophy V6.
The new body is a 98mm Wheel base and a Rear offset W+3 and S+2 in front, same measures than our previous body Mosler MT900.
Of course TRPScale only produce Licensed Bodies and this time we are planing to reproduce some version of this car like the one that Dimitri Enjalbert drove on 2010.
This body is the result of 4 years of work, and we hope that the miniz community will appreciate it as we are doing.

This body and the last one version will be the only bodies accepted on the next championship Renault Megane Cup that TRPScale will start create in some weeks we hope all community drivers join this competition and push miniz category around the world.

We post the presentation vídeo(spanish) and some images that will help to understand the new miniz trpscale body.

renault megane trophy miniz OLYMPUS DIGITAL CAMERA

Posted on

New TRPscale Silicon Oil

We have created a line line of silicone oil for use on MiniZ damper systems and in other RC damper like 1:10 scale cars off-road.
The bottles have 60ml of silicone oil, and our first lauch is for spessors from 200 to 400 cSt.

trpscale silicone oil
